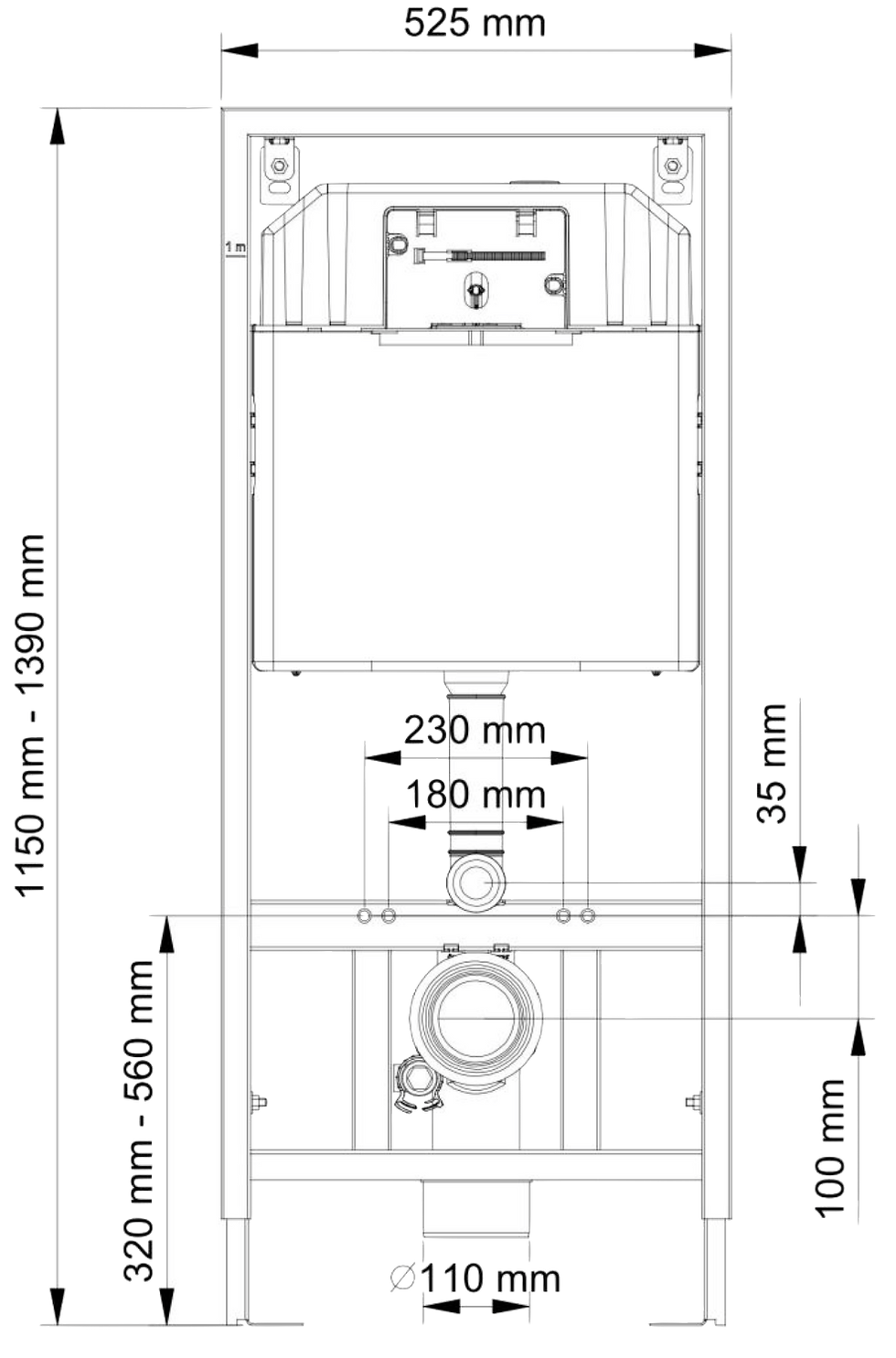

80S Toilet Frame Concealed Cistern

EN 14055 CL 1 - 7 - NL I - VR II Read more

COLOUR: WHITE

80S Toilet Frame Concealed Cistern
80S Toilet Frame Concealed Cistern
  • EN 14055 CL 1 - 7 - NL I - VR II
  • Discharge volume 3/6 L
  • Appropriate For Dry Wall Installation And Brick Wall Installation
  • Completely preassembled in the factory
  • Water tank capacity 10 L max.
  • Tank depth 80 mm (Overall thickness including frame 100 mm)
  • Mechanical Dual Flush
  • Water supply connection top right  G 1/2 Male
  • Acoustic Class (1 st Class) EN 14124 Inlet Valve
  • Water flow pressure 0.3 MPa (3 bar) / Max Vol : 9.0 dB,Flow rate : 9L/min
  • Impact Copolymer special PP Body. (High resistance to impact and thermal shock)
  • Styropor insulation in front of the body for a better acoustic level and to prevent condensation.
  • Powder coated, tubing profile thick (30 mm x 40 mm) metal frame.
  • WC hanging rods can bear up to 400 kgs. (Adjustable for 18 or 23 cm axial distance of toilet bowls.)

80S Toilet Frame Concealed Cistern

SKU: VS-12-001
Color

BOX WEIGHT 12.5 Kgs

PACKAGING Carton Box

PACKAGE INCLUDES Frame, Concealed Cistern and Fixing Brackets

UNITS PER PALLET 12 Pcs

Specification & details

Key features

  • EN 14055 CL 1 - 7 - NL I - VR II

  • Discharge volume 3/6 L

  • Appropriate For Dry Wall Installation And Brick Wall Installation

  • Completely preassembled in the factory

  • Water tank capacity 10 L max.

  • Tank depth 80 mm (Overall thickness including frame 100 mm)

  • Mechanical Dual Flush

  • Water supply connection top right G 1/2 Male

  • Acoustic Class (1 st Class) EN 14124 Inlet Valve

  • Water flow pressure 0.3 MPa (3 bar) / Max Vol : 9.0 dB,Flow rate : 9L/min

  • Impact Copolymer special PP Body. (High resistance to impact and thermal shock)

  • Styropor insulation in front of the body for a better acoustic level and to prevent condensation.

  • Powder coated, tubing profile thick (30 mm x 40 mm) metal frame.

  • WC hanging rods can bear up to 400 kgs. (Adjustable for 18 or 23 cm axial distance of toilet bowls.)



Packaging Info

BOX WEIGHT 12.5 Kgs
PACKAGING Carton Box
PACKAGE INCLUDES Frame, Concealed Cistern and Fixing Brackets
UNITS PER PALLET 12 Pcs
